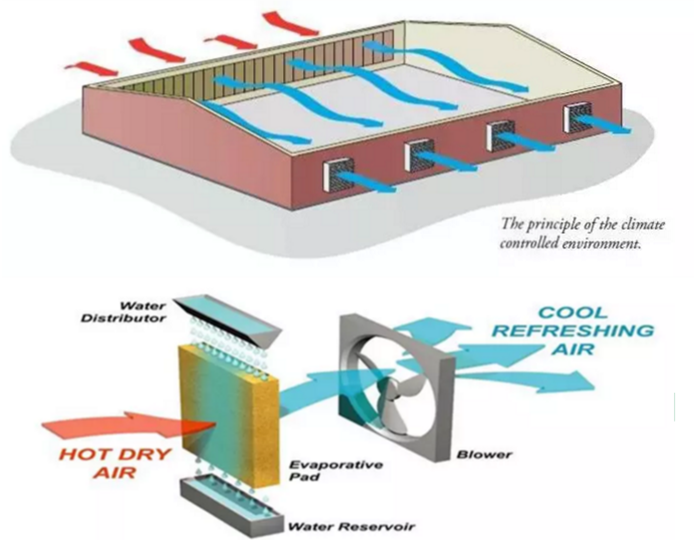

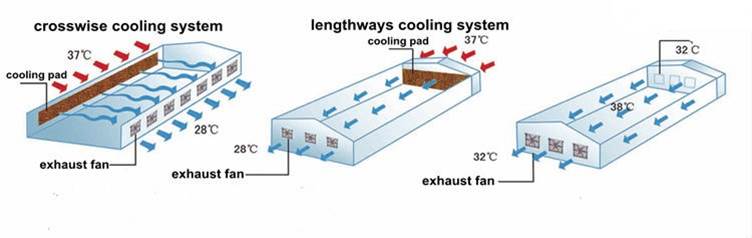

Cooling System Overview

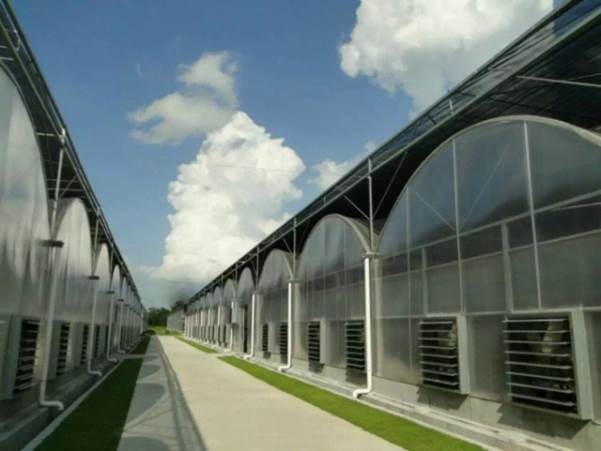

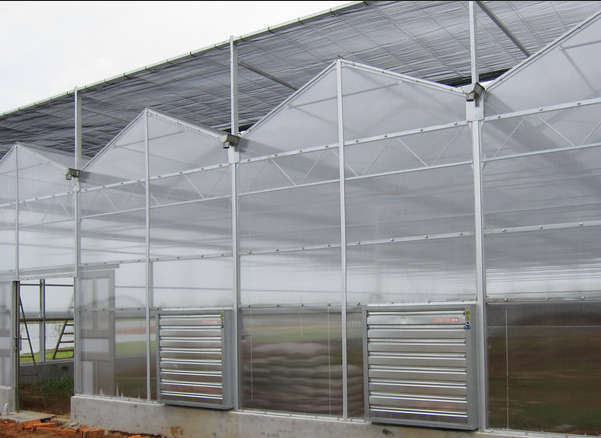

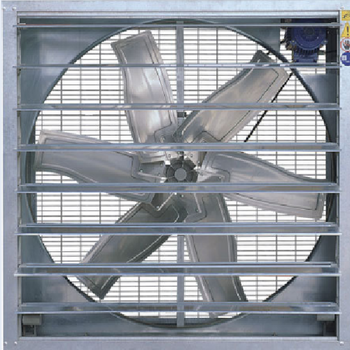

Negative Pressure Cooling Fan

(Exhaust fan)
• Frame size: 1380*1380*400 mm
• Power: 380 W
• Wind capacity: 22000 m²/h
• Blade size: 710 mm
• Blade speed: 440 r/min
• Motor speed: 1250 r/min
• Air quantity: 760 m³/min
• Noise:＜65 dB
• Input power: 1.1 KW
• Voltage: 380 V, 50 HZ

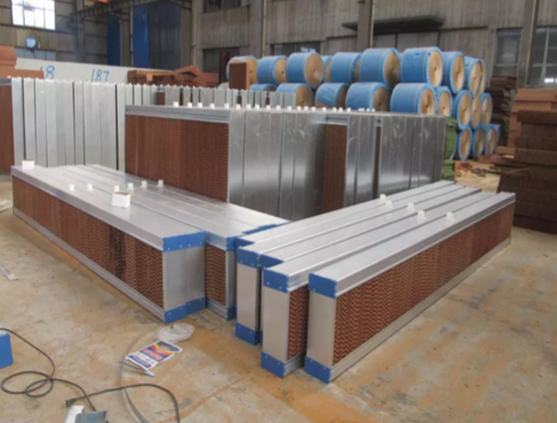

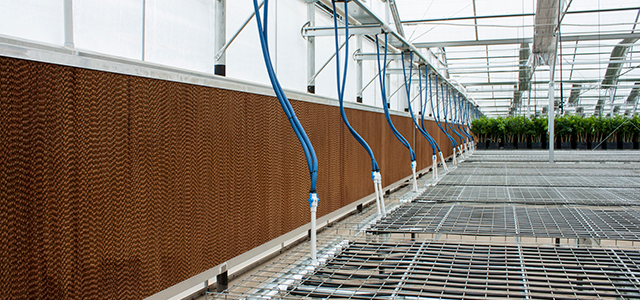

Evaporative Cooling Pad
• Height/H: 1500 mm
• Width/W: 5000 mm
• Thickness/D: 100 mm
• Angle corrugation α(°): 45°
• Angle corrugation β(°): 45°
• Water gutters at upper and lower

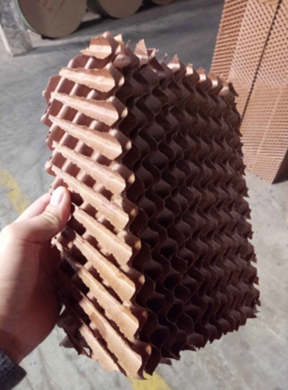

• Corrugated paper
• Electric control box
• Water pumps and other accessories
